Beacon Object File (BOF)

back to blog

Beacon Object Files are used by Command and Control (C2) frameworks such as Cobalt Strike, Havoc, Sliver, and others to perform post exploitation activities directly on a compromised host. A BOF is essentially a small Common Object File Format (COFF) program, written in C, that the Beacon/agent can load and execute in memory. The Beacon acts as a linker and loader, allowing operators to extend its functionality with custom code without producing standalone executables or DLLs. This makes BOFs a lightweight and stealthy way to run post exploit activities such as process injection, credential dumping, situational awareness, or privilege escalation during red-team operations.

Advantages

Disadvantages

more information at cobalt strike user guides

Environment

The blog will focus on making a havoc BOF. The first BOF will be focused on passing arguments and aggressor script (not sure what it’s called on havoc but on Cobalt strike it’s called like that so lets just call it the same lol).

My lab setup.

On my windows dev box, I have all my programming stuff and debugging tools. The tools I had are:

There are other tools but, those are what I ussually use on my windows dev box.

On my Kali

Creating first BOF

I actually got used compiling my BOF on my kali since it saves me time transferring the object file. But it’s up to you whether you want to do it on windows or kali, but I will recommend trying to use bof-vs since it also had boflint boflint

Below is the starting template for our BOF. As observe instead of “void main” we used “void go”. In BOF the void go is the main function and the entry point. When writing a BOF, beacon.h is required. This header file replaces normal C functions (like printf) with Beacon’s own functions, allowing your code to run inside a C2 beacon/agent/demon.

#include <windows.h>
#include "beacon.h"

//main function
void go(char* args, int argc){

    datap parser;
    char * Strinput;
    int Intinput;

    //Beacon data parser
    BeaconDataParse(&parser, args, argc);
    Strinput = BeaconDataExtract(&parser, NULL);
    Intinput  = BeaconDataInt(&parser);

    //hello world
    BeaconPrintf(CALLBACK_OUTPUT, "hello world");

    //prints out message to demon console
    BeaconPrintf(CALLBACK_OUTPUT, "Parsed:\nFirst input %s \nsecond input %d ", Strinput, Intinput);
}

to compile the BOF, run the command below. Note I am using my kali here when I am compiling.

x86_64-w64-mingw32-gcc -c src/test.c -w -o bin/test.o

You can test your newly created beacon by using inline-execute. To use this get a callback or execute the payload on your dev box. Then interact with the session and run the command shown below.

alt text

Aggressor script

Next is we need to build the aggressor script. The aggressor script is loaded in the C2. This is used for registering a new command to our C2 allowing the operator to extends the C2 capability. aggressor script

Below is the template for our havoc aggressor script.

from havoc import Demon, RegisterCommand, RegisterModule

def run_firstbof(demon_id, *args): #function

    task_id: str = None
    demon: Demon = None
    packer: Packer = Packer()
    # Get the beacon instance
    demon = Demon(demon_id)

    # packs the user input from C2 client
    packer.addstr(args[0])
    packer.addint(int(args[1]))

    # prints out to the demon console
    task_id = demon.ConsoleWrite(demon.CONSOLE_TASK, f"Tasked the demon to execute first bof | message from aggressor script")

    # executes demon inline-execute
    demon.InlineExecute(task_id, "go", "bin/test.o", packer.getbuffer(), False)

    return task_id

#I maybe wrong on the naming, but here is how I understand it.

#RegisterCommand(pyfunction, "<modulename>", "command name", "description can be seen via help <modulename>", <not sure>, "shows an example usage command can be seen via help <modulename> <command name>", "example command to execute just the args ")
RegisterModule( "testbof", "Your first bof description", "", "", "", ""  )
RegisterCommand(run_firstbof, "testbof", "firstbof", "Description goes here", 0, "usage: ", "test 123")

to load the script, click “Scripts” (will open script manager) > Load script > and then load the python script. On my havoc c2 there is a bug wherein if you try to load a script sometimes it can’t be seen even if you refresh it on the script manager so I had to re open the client or the server.

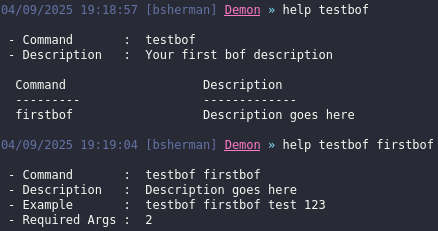

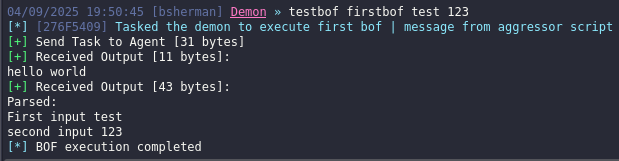

Below screenshot shows our new command on havoc.

alt text

For more reference on what you could use for demon execution, I typically check the github source code havoc source code and then look at the PyDemonClass_methods. There are more to dig in and if you need something definitely checkout the source.

alt text

I learned from the following links below. Also from CRTO, CRTO2, ODPC, maldev academy and reading source code and understanding what they do.

Next up is creating BOF with winapi for a process injection. Go to Next
